HUXWRX FLOW 22 TI DETAILS

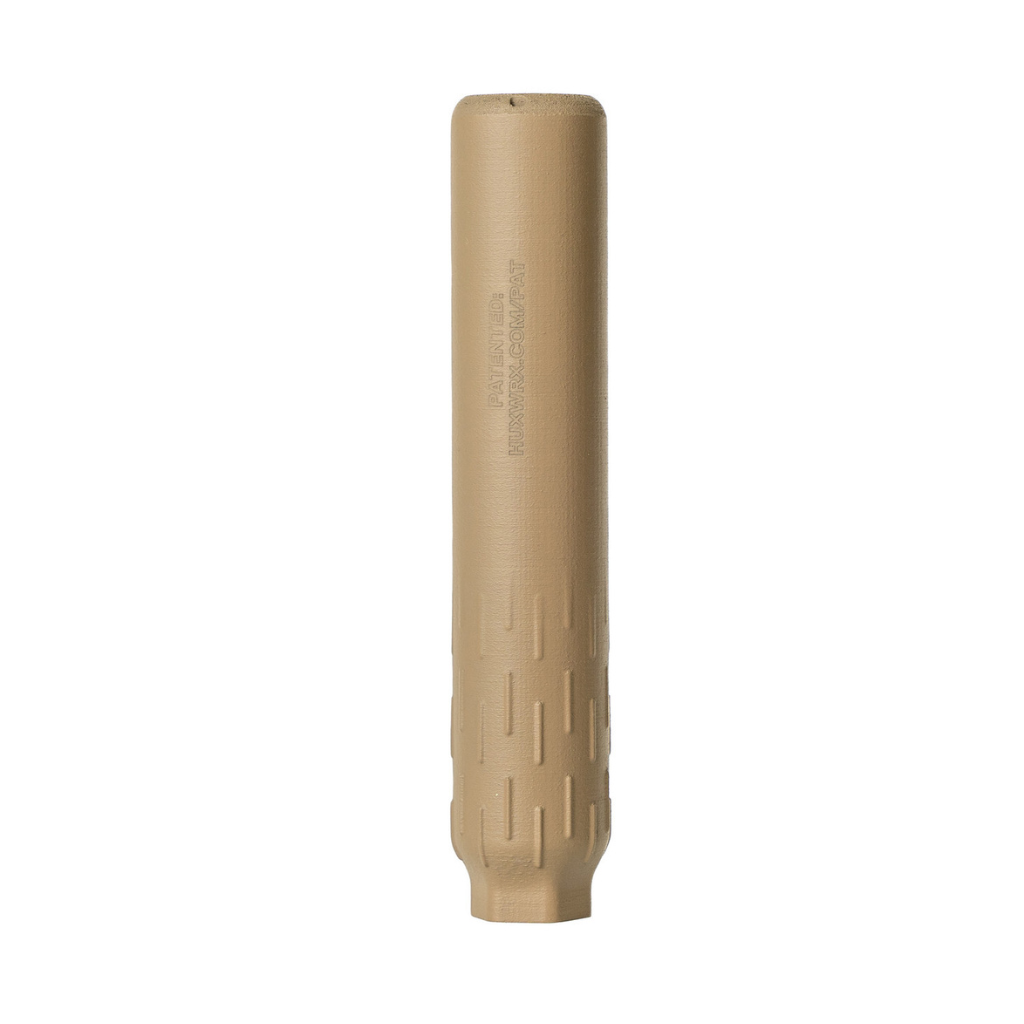

The HUXWRX Flow 22 Ti is a fully 3D-printed Grade 5 titanium rimfire suppressor built around HUXWRX's patented Flow-Through gas management system. It weighs 3.9 oz (111g), measures 5.53 inches in length, and has a 1.06-inch outer diameter. It threads directly onto any 1/2x28 host with no barrel length restrictions and is full-auto rated across .22 LR, .22 Mag, .17 HMR, and 5.7x28. The finish is high-temp Cerakote rated to 1,800°F in Black or FDE. The Flow 22 Ti ships with a dedicated wrench and carries HUXWRX's limited lifetime warranty.

FEATURES AND BENEFITS

Fully 3D-printed in Grade 5 titanium — additive manufacturing is what makes the Flow-Through baffle architecture possible at this weight. No other construction method produces this combination of geometry, strength, and 3.9 oz total weight in a titanium rimfire can

Patented Flow-Through gas management: the baffle stack is engineered to vent combustion gases forward rather than cycling them back into the action, which reduces blowback to the shooter's face, keeps the host firearm's action cleaner, and supports consistent cycling in semi-auto platforms

No barrel length restrictions across all supported calibers — runs on pistols and rifles regardless of barrel length

Full-auto rated for sustained fire applications

Caliber coverage from .22 LR and .22 Mag through .17 HMR and 5.7x28 — one suppressor for the entire rimfire battery plus 5.7

1/2x28 direct-thread mount with a recommended installation torque of 125 in-lbf (10 ft-lbf / 12.5 Nm); standard 3/4-inch wrench fits the hex flats

Cerakote finish withstands temperatures up to 1,800°F for sustained fire durability

Available in Black or FDE (Flat Dark Earth)

Limited lifetime warranty from HUXWRX Safety Co. against manufacturing defects and damage from normal use

FLOW-THROUGH TECHNOLOGY

Flow-Through is HUXWRX's patented baffle system, and it's what separates the Flow 22 Ti from conventional rimfire cans. Traditional suppressors create a sealed chamber that can push fouling and blowback gas rearward into the action. The Flow-Through design manages gas direction differently, reducing the volume of combustion byproducts cycling back toward the shooter. The result is less blowback in semi-auto operation, a cleaner action over high round counts, and improved shot-to-shot consistency.

The Flow 22 Ti is only possible in this form because of 3D printing — the internal baffle geometry that enables the Flow-Through system would be prohibitively complex or heavy to produce through conventional machining in titanium. Grade 5 Ti provides the material strength needed for rimfire and .17 caliber high-velocity use at a weight that conventional stainless or aluminum construction cannot match.

INSTALLATION

Thread the Flow 22 Ti directly onto the host firearm's 1/2x28 barrel threads (right-hand). Use the included wrench on the suppressor's 3/4-inch hex flats and tighten to 125 in-lbf (10 ft-lbf / 12.5 Nm). A standard 3/4-inch crescent or adjustable wrench may also be used. Verify the firearm is unloaded and the chamber is clear before installing or removing. Ensure all mounting surfaces and barrel threads are clean before installation.

MAINTENANCE

The Flow 22 Ti requires periodic cleaning. HUXWRX's recommended cleaning interval is every 500 rounds or when the suppressor reaches 5 oz (142g) total weight — whichever comes first. At its new weight of 3.9 oz (111g), this means cleaning is triggered when the suppressor accumulates approximately 1.1 oz (31g) of carbon and fouling. To remove: index the supplied wrench on the 3/4-inch hex flats and loosen counter-clockwise. HUXWRX recommends HUXWRX Suppressor Sauce as the most efficient maintenance product for performance and service life.

SPECIFICATIONS

HUXWRX builds to exacting standards. Here's exactly what you're getting.
